Measurement Software Optical Polarizing Microscope Digital 40X 1000X

Brand Name : Phidix

Model Number : M14103

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 year

Drawtube : Trinocular

Theory : Metallurgical Microscope

Lead-time : 15-20 Work Days

Optical system : Plan achromatic optical system

Magnification : 40X-1000X

Eyepiece : WF10X

Objective : Achromatic 4X/10X/40X/100X

Nosepiece : Quadruple Nosepiece

Focusing : Coarse Adjustment Focusing

Illumination : LED or Halogen Illumination

Camera : Optional

Contact Now

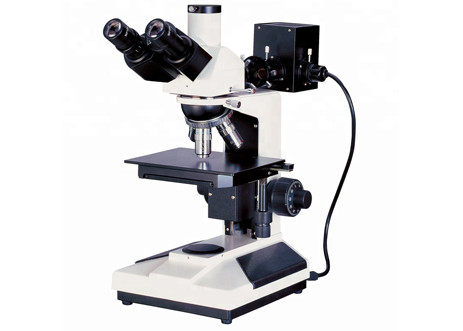

Metallurgical Polarizing Microscope With Digital Camera And Measurement Software

M14103 Metallurgical Polarizing Microscope With Digital Camera And Measurement Software. Polarizing is a method of changing ordinary light into polarized light for microscopic inspection to identify whether a substance is single refraction (anisotropy) or birefringence (anisotropy). Birefringence is the basic characteristic of crystals. Therefore, polarized light microscopes are widely used in minerals, chemistry and other fields. In humans and zoology, polarized light microscopy is often used to identify bones, teeth, cholesterol, nerve fibers, tumor cells, striated muscle and hair.

Features:

- This product is a high cost-effective microscope.

- It is widely used for chip detecting, material analysis, mineral analysis and metal analysis etc.

Item Description / Value
Optical system: Plan Achromatic optical system
View tube:

Trinocular, 30° inclined, 360°rotating.

Splitting ratio: 100:0 or 0:100.

IPD adjustment: 50mm ~ 75mm, Diopter adjustment: ± 5 diopters.
Eyepiece: High eye level WF PL10X(Φ18mm)
Objective: Plan Achromatic long working distance metallurgical objective: Standard: PL 5X, PL10X, PL L20X, PL L50X, Optional: PL L100X
Nosepiece: Quadruple (4-position).
Stage:

Double layer mechanical stage, stage size: 185*140mm, moving range: 75mm*50mm.

Right hand control for X and Y direction.
Focusing system:

Coaxial coarse and fine focusing system.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm.

Focusing stopper for protecting objective and sample.
Illumination:

Transmitted and reflected illumination.

6V/20W halogen lamp or LED lamp, brightness adjustable.

With center adjustable field stop and aperture stop.
Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional.
Power supply: AC100-240V, 50/60Hz.
